YinRuins CVBS Mini Spy Hidden Camera HD 3.6mm 70degree 700TVL Hidden Mini Analog CCTV Surveillance Camera AV Output

• Mini Analog Spy Hidden Camera: Mini in Size and Easy for Installation and Use, Suitable for many occasions such as family and office.
• HD Camera: This Analog cameras resolution and picture quality is very better.
• Working Condition: Camera can work during daytime and night with light. If under low light, picture quality is not so good as the daytime. Please use 9V to 12V DC Power, Max 500mA, we suggest use 9V Power.

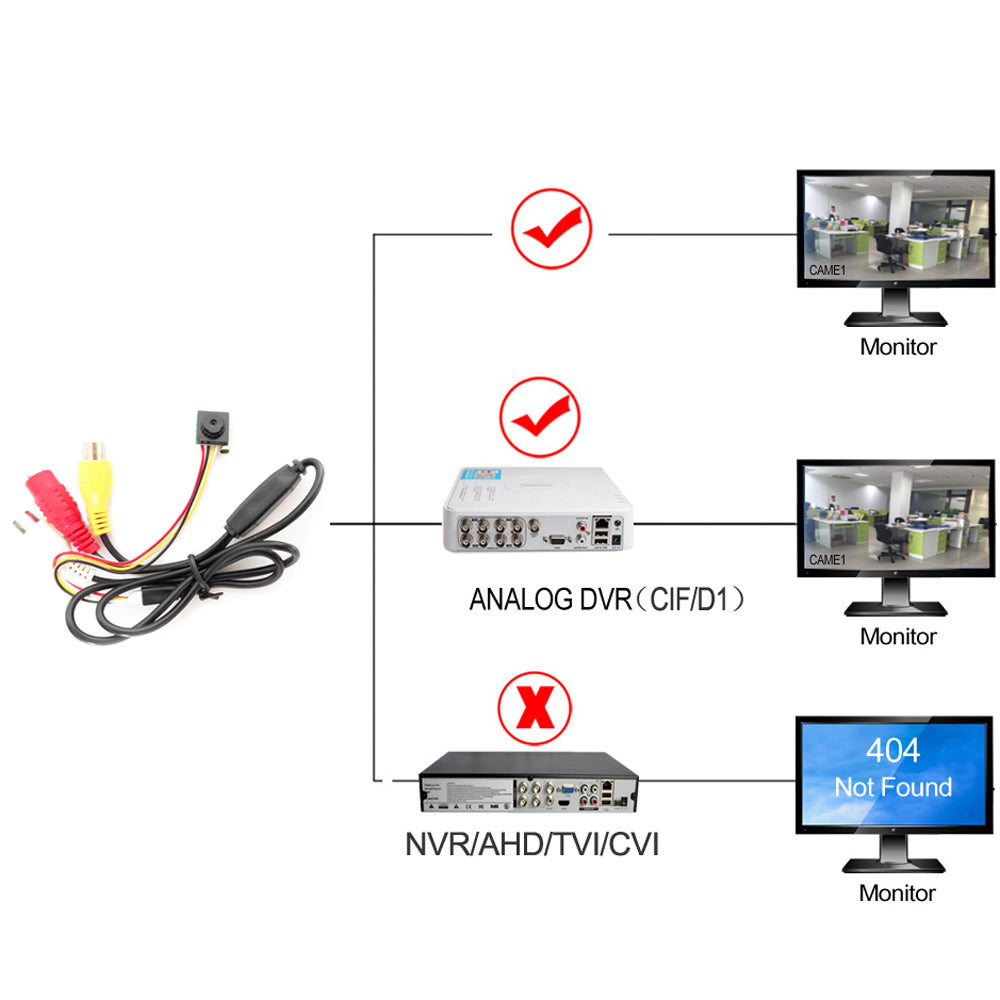

• This is CVBS Analog Camera: When you order please check your DVR recorder support Analog Camera, or will not work.Please get to know: This Analog Camera can't connect to NVR/AHD/TVI/CVI DVR directly.

Mini Spy Analog Security Cameras

Technical parameters:

Pickup device: Color

Horizontal resolution: 700TVL

System format: NTSC ( H X V ): 542 X 492

Electronic shutter: NTSCL= 1/60 - 1/120,000 seconds

Minimum illumination: 0.1Lux (F: 1.2)

SNR(Signal to Noise Ratio): > 48dB (automatic gain closed)

Gamma: 0.45

Backlight compensation: Auto

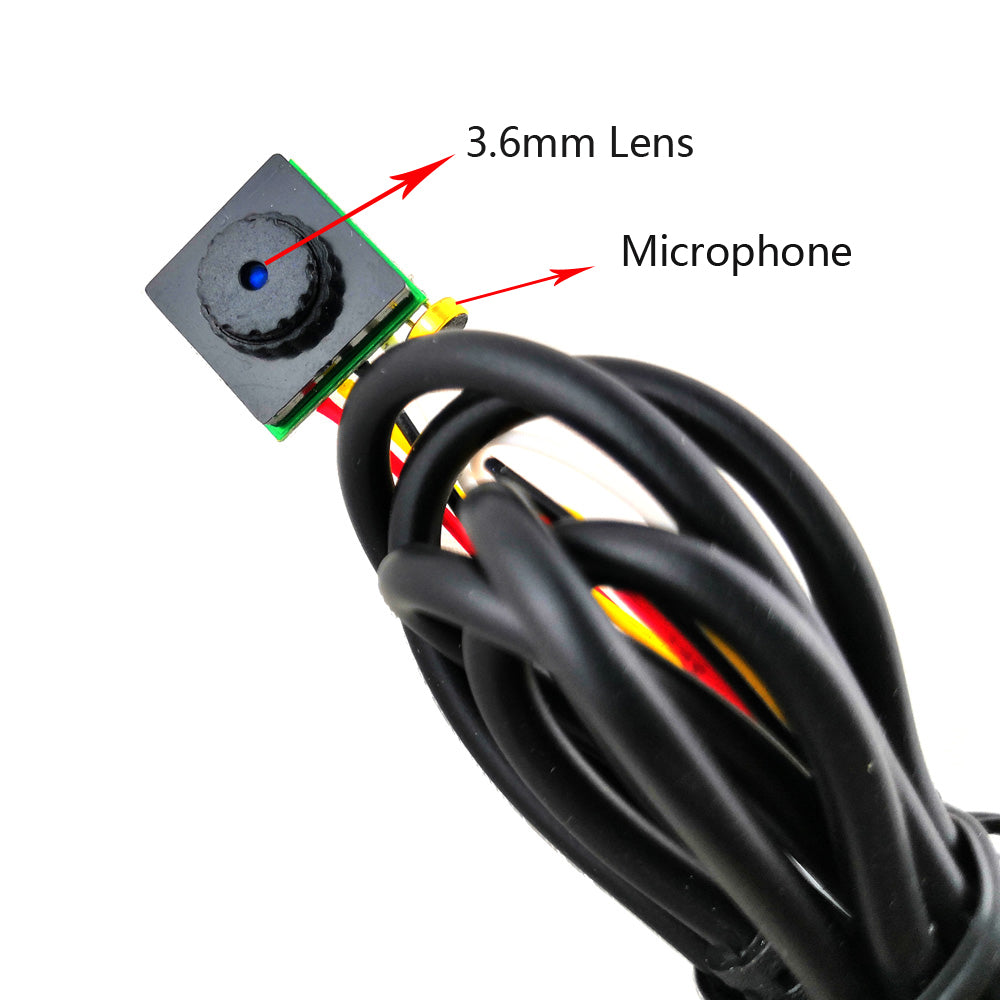

Lens: Original lens 3.6mm selective

Automatic gain: ON/OFF

Automatic white balance: ON/OFF

Lens installation: C/CS

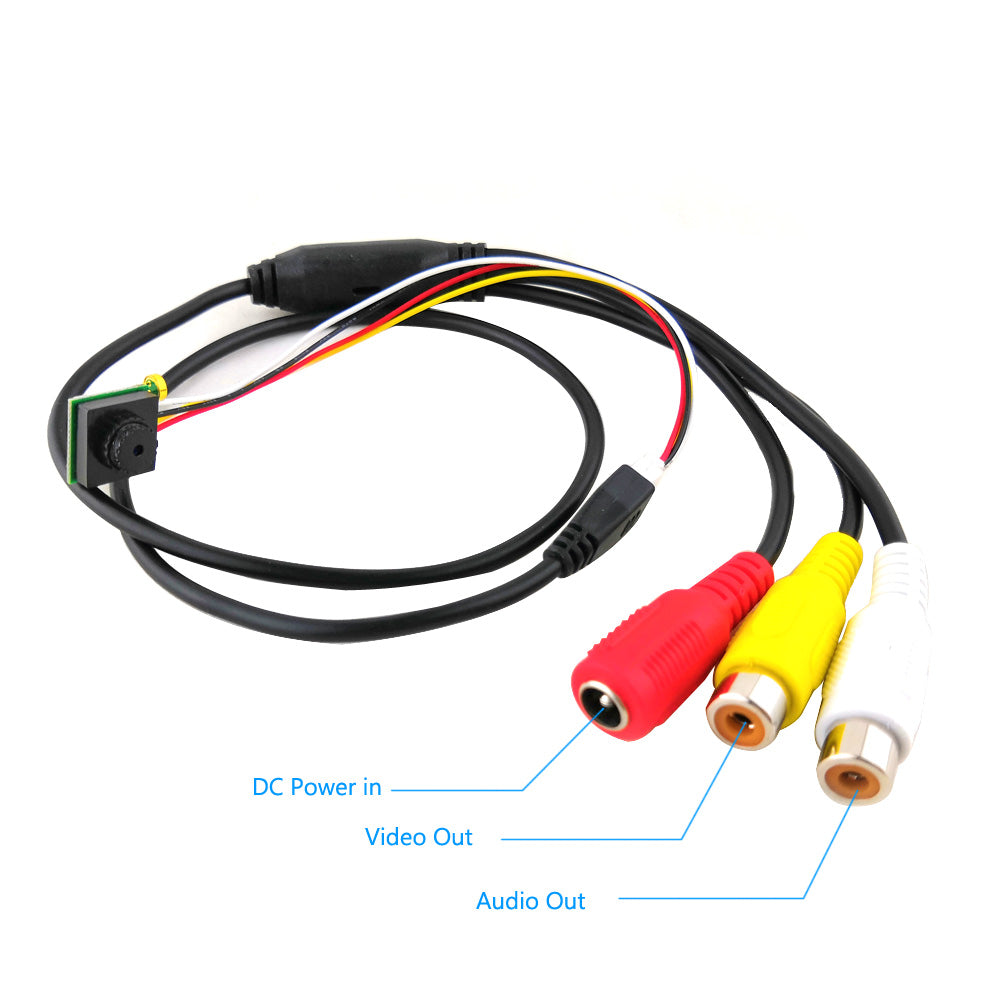

Video output: 1 Vp-p, 75Ω

Power input: DC 9V to 12V

Working temperature range: -10C  to 50C  (maximum humidity 95%)

Storage temperature range: - 20C  to 60C  (maximum humidity 95%)

Applications: Widely used for Home, Office, helicopters and other aerial aircraft, as son on.

Features: Clean and fine image, vivid picture quality, low illumination, wide voltage and low power consumption.

Package include:

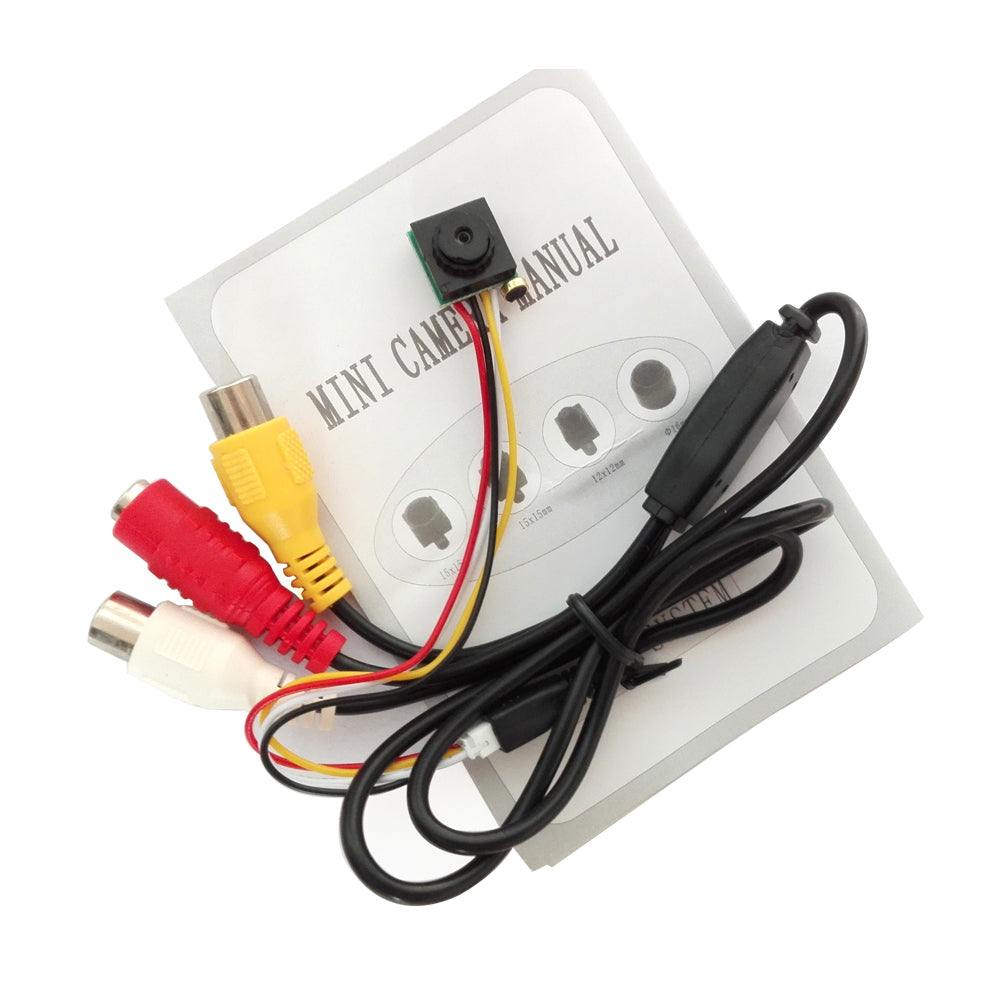

1 x Mini Hidden Security Camera

Note:

1.Power adapter is not included(Please use 9V to 12V DC Power, Max 500mA),  we suggest use 9V Power.

2.It is just a camera module, without housing, indoor use, not waterproof.
